IMTS 2016: Zoller Inc. (W-2022)

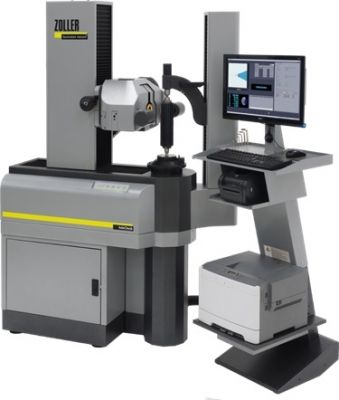

»hobCheck« Gear Hob Measuring Machine
The Zoller »hobCheck« brings an expanded range of possibilities and solutions to the table with the ability to measure gear hobs according to standards with high accuracy and easy programming, using intuitive data entry and parameter selection.
Conventional gear hob measuring machines only measure hobs, and they are doing so in a very rigid way using an old-school, tactile approach which is literally "blind." The Zoller »hobCheck« opens the eyes to a new level of tool inspection with the ability to measure small hobs that were previously not measureable. For hobs under a certain size, the conventional touch probe alone cannot measure all required parameters, e.g. line of action. The touch probe simply can't reach all required locations on the teeth of the hob. However, this can easily be achieved with an optical approach, and furthermore it's important to note that the camera system tilts in accordance with the lead angle.
Specific characteristics can be re-measured based on the interactive report. Simply select the reported dimension, then the machine positions the tooth in question into field view and allows the user to clean the tooth and proceed with the re-measurement.
»hobCheck« now opens the door to measuring a huge variety of other cutting tools. Examples are form milling cutters (gear milling cutters, rack milling cutters, any free form), (indexable) worm milling cutters, including the ability to generate the actual form cut into the part, shaper cutters, coupons, endmills, drills, reamers, turning tools, inserts, PCD mono block tools, indexable tools and (form) grinding wheels.
Unlike a tactile approach, with Zoller's vision system you can determine and document edge wear to minimize removal during regrind.
